smart irrigation soil moisture sensor with LCD arduino water pump kit

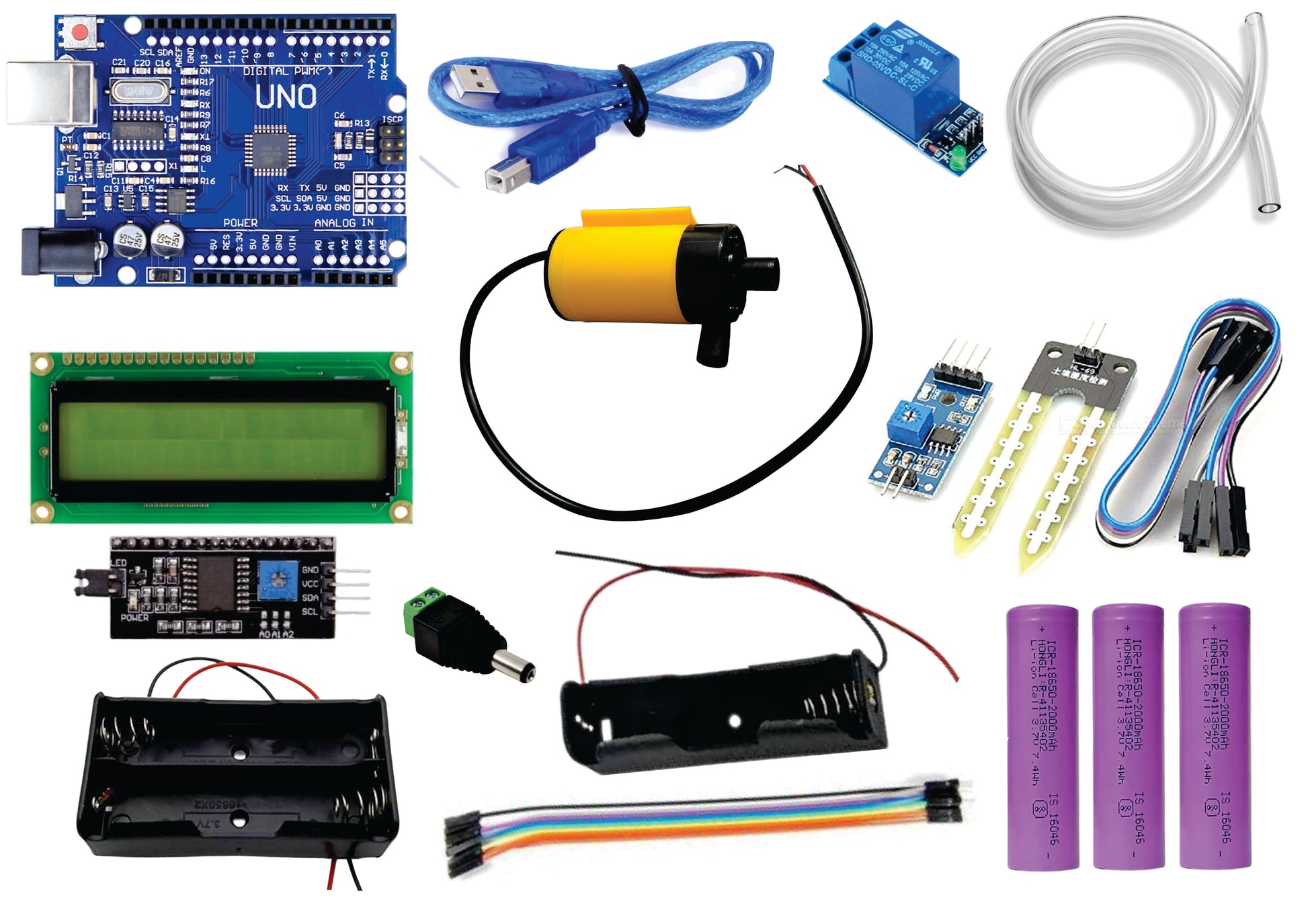

Package includes

• 1x Arduino uno smd (Loaded code)
• 1X mini water pump 5-9V (yellow high Quality)
• 1X 1 feet water pipe
• 1x  16x2 LCD with i2C interface
• 1x 5V relay
• 1x Soil moisture sensor
• 3x 18650 Li-ion Battery 1200Mah (Rechargeable)
• 1x 2S Battery Holder
• 1x 1S battery holder
• 1x  DC jack

• 1x USB cable
• 15 x Female to Female jumper wires

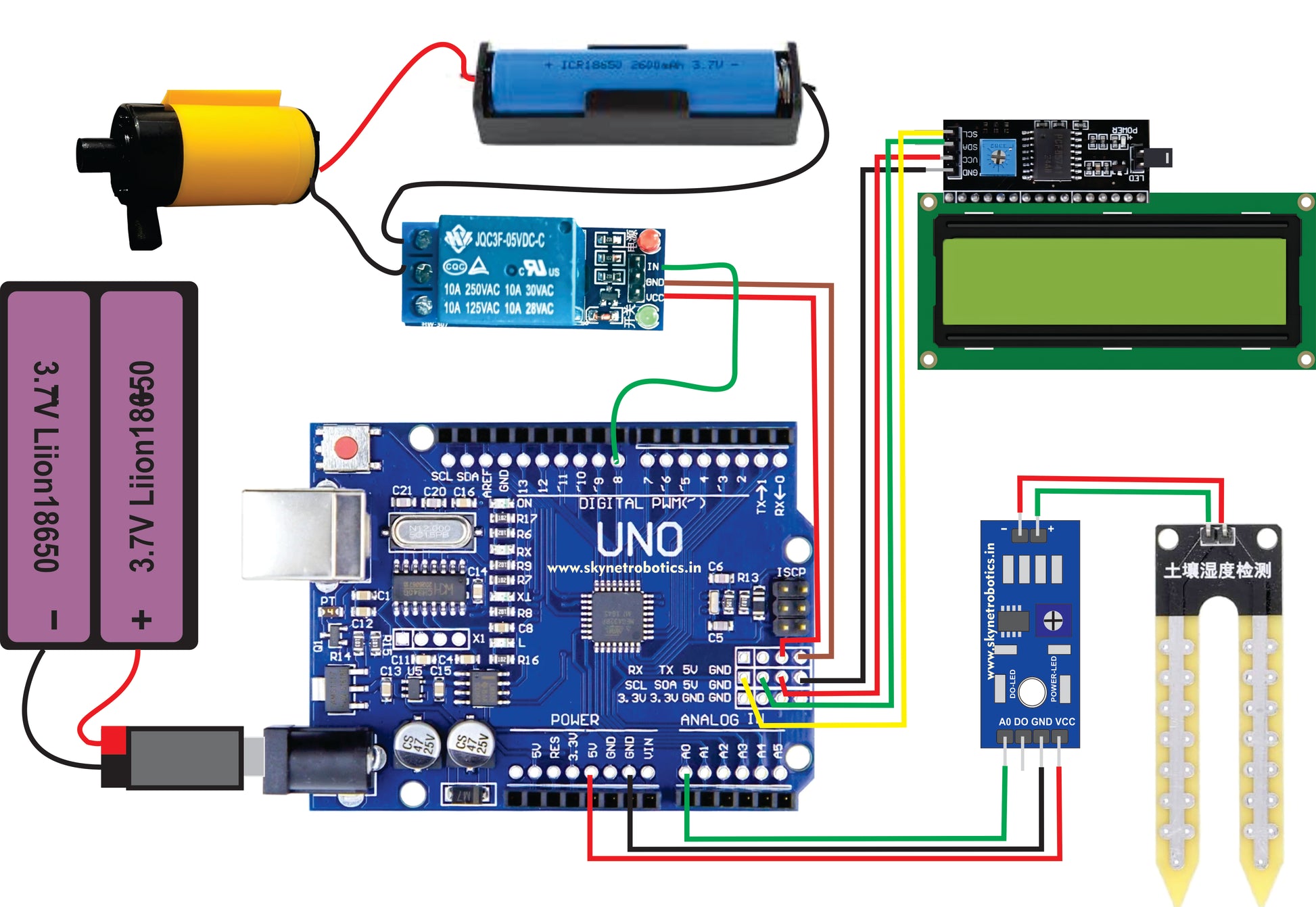

• 1X circuit diagram manual page

🔹 Key Features

• Automatic irrigation based on soil moisture level

• Arduino-controlled smart watering system

• Real-time soil moisture display on LCD

• Saves water and prevents over-irrigation

• Easy to assemble and beginner-friendly

• Ideal for home gardens, farms, and plant pots

🔹 How It Works

The soil moisture sensor continuously monitors the water content in the soil. When the soil becomes dry, the Arduino activates the relay to turn ON the water pump. Once adequate moisture is reached, the pump automatically turns OFF. The LCD displays moisture levels and pump status in real time.

🔹 Applications

• Smart agriculture projects

• School and college Arduino projects

• Automatic garden watering system

• Science exhibitions and STEM learning

• Home plant irrigation automation
